Samiflex®
Samiflex® - Standard coupling
The standard Samiflex® Type A coupling consists of four components: two identical hubs, one elastic insert, and one clamping ring.
Due to their torsional design, Samiflex® couplings allow the elastic insert to be mounted and removed without the need to move either the motor or the machine.
- Easy alignment
- Average elastic element lifespan: 25,000 hours
- Flame-retardant and dielectric polyurethane elastomer.
- High vibration absorption
- Compliant with ATEX Directive 94/9/EC.
- Available in a torque-limiter adapted version
- Nominal torque: 7 Nm – 100,000 Nm

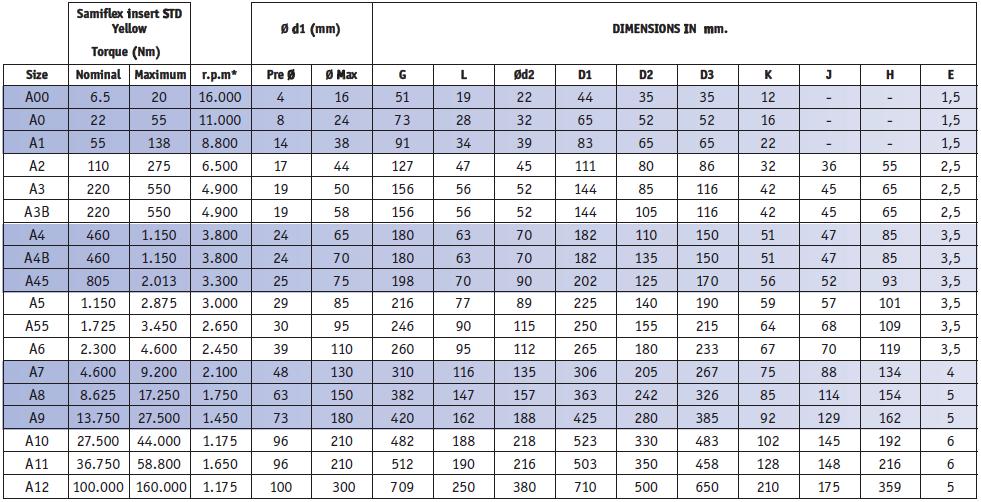

A Type

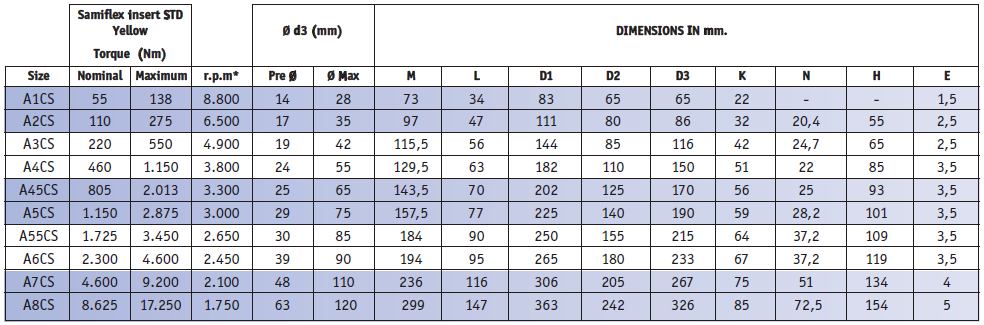

CS Type
